38% off

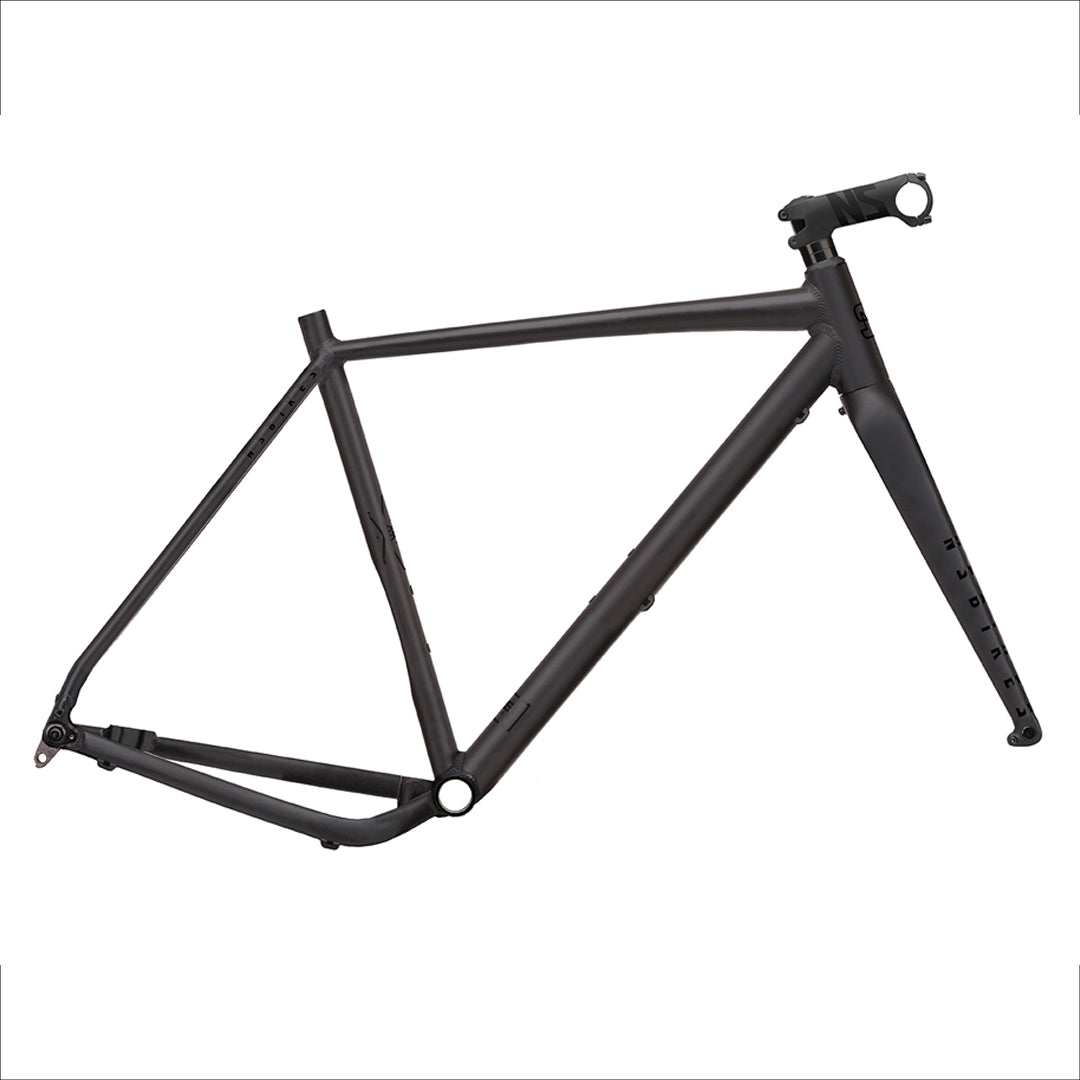

2021 NS RAG+ Framset

£420.00 £679.99
By NS Bikes
Size
Colour
Description

RAG is short for Road and Gravel and the 'plus' is there because you can run it with standard 700C road tires, 700C gravel tires (up to 45C) or even 27.5” MTB wheels with tires as big as 2.1”! Perfect for anyone who wants a REAL all round drop bar bike. Designed for grinding gravel roads, CX racing, commuting, adventure and even classic road riding. No wonder everyone loves the RAG+. It has unique NS styling and a range of applications that is virtually unlimited.




MAIN FEATURES

- Road And Gravel + frameset with carbon fork

- lots of tire clearance: 700c up to 45 or 27.5”x2.1

- hydraulic disc brakes mounts

- thru axle design: front 15x100 & rear 12x142

- includes custom NS frame, carbon fork & aluminium stem

- wide range of applications incl. Road, Gravel, CX Endurance



TECHNICAL SPECIFICATION

Frame: AL6061-T6 custom formed and butted tubes, AL6061-T6 forged parts, smooth ‘double pass’ welding in all critical areas

Fork: full carbon fork (incl. steerer), 15mm thru-axle

Stem: 31.8 alloy stem, sizes: 80mm (S), 90mm (M), 100mm (L), 110mm (XL)

Head tube: IS42/IS52

Head tube length: S size: 110mm, M size: 130mm, L: 160mm, XL size: 180mm

Steerer tube: fits forks with standard 1-1/8” or tapered 1.5 - 1-1/8” steerer tubes

Disc brake: flatmount disc brake mount (frame & fork)

Front derailleur: not compatible

BB: threaded 68 mm


Rear derailleur: removable hanger included

Chainring:biggest chainring up to 46t

Seat post/clamp: 27.2mm / 31.8mm

Max seat post insertion: 230mm (S), 270mm (M), 300mm (L), 330mm (XL)

Maximum tire size recommended: 700c x 45, 650B x 2.2”

Hub spacing: 142 x 12mm, 100x15 fork, NS axles included

Weight: frame 1.7kg (M size), fork 490g, stem 130g, axles F&R 40g each

Specifications subject to change without notice. Actual colours and design may vary slightly from the images on the website.

GEOMETRY


RAG SET
Wheel size 700c
Based on fork travel 400mm A-C 400mm A-C 400mm A-C 400mm A-C
Reach mm 374,0 382,0 391,0 400,0
in 14,7 15,0 15,4 15,7
FC mm 591,0 597,0 616,0 631,0
in 23,3 23,5 24,3 24,8
Standover mm 768,0 796,0 824,0 847,0
in 30,2 31,3 32,4 33,3
Stack mm 536,0 559,0 587,0 606,0
in 21,1 22,0 23,1 23,9
Effective TT mm 537,0 553,0 571,0 585,0
in 21,1 21,8 22,5 23,0
Actual TT mm 522,0 540,0 557,0 575,0
in 20,6 21,3 21,9 22,6
Seat tube mm 495,0 530,0 560,0 590,0
in 19,5 21,0 22,0 23,2
Chain stays mm 420,0 420,0 420,0 420,0
in 16,5 16,5 16,5 16,5
BB rise mm -70,0 -70,0 -70,0 -70,0
in -2,8 -2,8 -2,8 -2,8
Headtube angle 70,5 71,5 71,5 71,5
ST angle effective 73,0 73,0 73,0 73,0
Wheelbase mm 1001,0 1007,0 1026,0 1041,0
in 39,2 39,6 40,4 41,0
Delivery

Our bikes are shipped by FedEx UK providing a reliable and speedy service.

Standard bikes are sent Fedex 48 service. - £50

Electric bikes are sent FedEx 48 service. - £80

In some instances we may ship items out with another postage service depending on the status and availability of items ordered. (Customers will not be charged more and will be refunded any unused postage cost).

Delivery costs will be clearly stated on the checkout page, though you will need to register (to provide your delivery address) in order to see the delivery costs.

If you have any questions about delivery charges, times or none delivery please do not hesitate to get in touch by email: bikes@comriecroft.com or by telephone on +44 (0)1764 670 140. We aim to process in 48 hours, but during busy periods this could be extended but we will aim to complete your order within 5 working days. Please bear in mind in some cases orders can take longer to complete, please contact us for more details..

Road Bike Sizing Chart

Rider Height (ft - in) Rider Height (cm) Size Frame Size (cm)
4' 10" - 5' 0" 148 - 152 XXS 47 - 48
5' 0" - 5' 3" 152 - 160 XS 49 - 50
5' 3" - 5' 6" 160 - 168 S 51 - 52 - 53
5' 6" - 5' 9" 168 - 175 M 54 - 55
5' 9" - 6' 0" 175 - 183 L 56 - 57 - 58
6' 0" - 6' 3" 183 - 191 XL 58 - 59 - 60
6' 3" - 6' 6" 191 - 198 XXL 61 - 62 - 63

Women's Road Bike Sizing Chart

Rider Height (ft - in) Rider Height (cm) Size Frame Size (cm)
4' 10" - 5' 1" 147 - 155 XXS 44 - 45 - 46
5' 1" - 5' 3" 155 - 160 XS 47 - 48 - 49
5' 3" - 5' 5" 160 - 165 S 50 - 51 - 52
5' 5" - 5' 8" 165 - 172 M 53 - 54 - 55
5' 8" - 5' 10" 172 - 180 L 56 - 57
